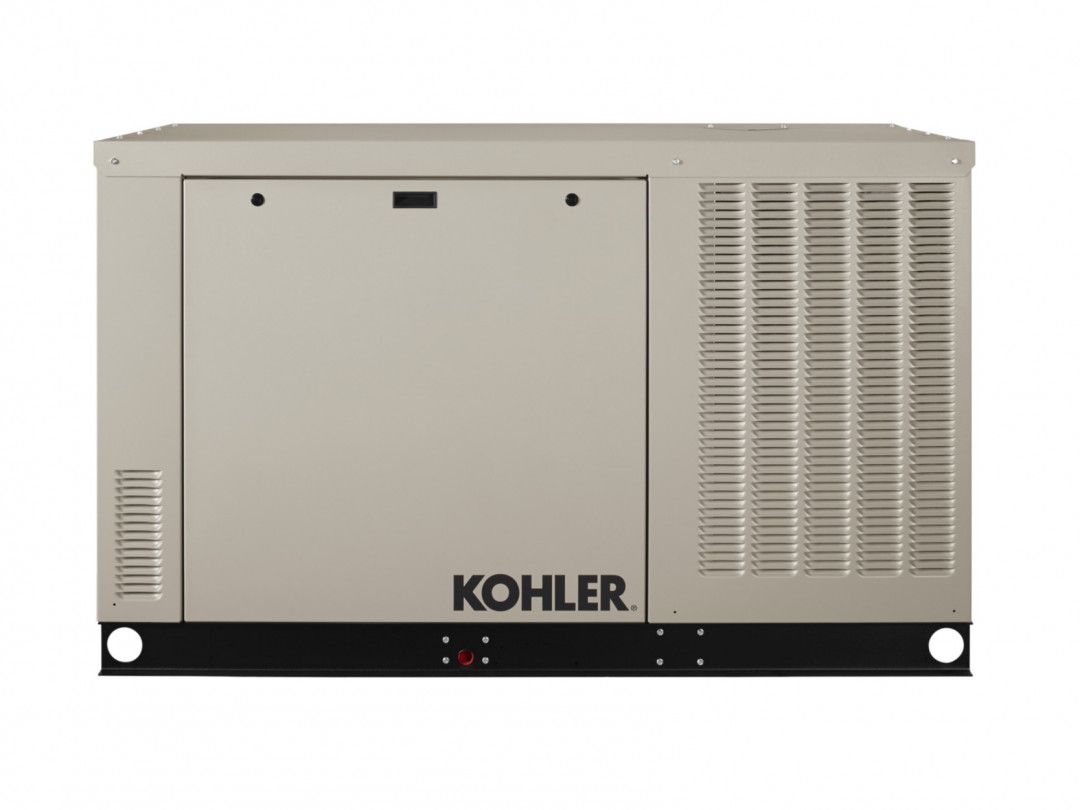

24 kW Generator

OVERVIEW

Reliable power for large residential or small business needs. When the power goes out during a bad storm or power failure, your 24 kW KOHLER® generator with industrial-grade engine keeps your home or business - from central air to sump pump to personal computers - up and running.*

• Powerful. In just 10 seconds, your KOHLER generator automatically restores power and keeps you connected to the things you love to do.
• Smart. You get steady, high-quality power that protects your electronics from damage related to low-quality power sources.
• Premium warranty. We've got you covered with 5-year, 2,000-hour protection, and an aluminum enclosure that's built to last.
• Quiet. Neighborhood-friendly, with weekly exercise volume that's similar to a normal conversation.
• Innovative. This generator's patent-pending innovations include a three-fan, automotive-style cooling system that keeps the sound level down.

THE POWER YOU NEED

• Powerful operation on either natural gas or liquid propane (LPG); the 24RCLA provides 100 amps on LPG and 87 amps on natural gas.
• Extraordinary peak motor-starting capacity, with 24RCL at 37kVA at 240V
• Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics and appliances
• Powered by Kohler KG2204 industrial-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm
• Compatible with OnCue® Plus and optional OnCue® Plus Wireless Generator Management Systems, Programmable Interface Module (PIM) and Load Control Module (LCM) or Load Shed kit (LCM or Load Shed Kit compatible with single phase generators only).

THE CONVENIENCES YOU EXPECT

• RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
• Extremely quiet operation with sound at 61 dBA at full speed and 54 dBA at exercise (normal conversation level)
• Corrosion-resistant aluminum enclosure is standard
• Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
• Compatible with OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, Programmable Interface Module (PIM) and Load Control Module (LCM) or Load Shed kit (LCM or Load Shed Kit compatible with single phase generators only).
• These new RCL generators are listed and labeled to meet NFPA 37 requirements for installations as close as 18 inches. Must follow proper installation guidelines for clearance to windows, doors, air intakes per installation manual and local codes.

*Based on generator and load size.

Model 24RCLA

Rated kW LP 24 kW

Rated kW NG 21 kW

Amps LP 100 amps

Amps NG 87 amps

Peak Motor Starting kVA @240 V 37 kVa

Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.

Displacement 2.2 L (134.25 cu. in.)

Horsepower NG 36 HP, LP 40 HP

Enclosure Material Aluminum

Sound Output During Weekly Exercise 54 dB(A)

Sound Output During Full-speed Operation 61 dB(A)

Response Time 10 seconds

Warranty Premium five-year limited warranty

Country of Origin US

Certifications/Listings CSA,UL 2200,EPA

Automatic Transfer Switch Included Sold Separately

Remote Monitoring Available Included

Off Grid / Utility Backup Utility Backup

Weight 1260 lbs. (572 kg)

Alternator Type 4-Pole, Rotating Field

Controller RDC2 Controller

Cylinder Arrangement Inline-4 cylinder

Dimensions 1880 mm x 836 mm x 1169 mm (74 in. x 32.9 in. x 46.0 in.)

Engine Manufacturer/Description KOHLER

Engine Model KG2204, 2.2L, 4-Cycle, Natural Aspiration

Engine/Alternator RPM 1800

Fuel Type LPG,Natural Gas

Frequency 0=50 Hz, 1=60 Hz

Phase Single Phase or Three Phase

Voltage @ 60 Hz 120/240

Digital Voltage Regulation ±1.0%

Built in Mounting Pad No

NFPA 37 Reduced Setback Yes
